High Speed Vertical Bandsaw Machines
Model - VT - 350M / 450M / 550M / 650M

We are Manufacturer, Supplier, Exporter of Vertical Bandsaw Machines, High Speed Bandsaw Machines and our setup is situated in Kolhapur, Maharashtra, India.

Specifications :

Specification	VT - 350M	VT - 450M	VT - 550M	VT - 650M	VT-350SA	VT-450SA
Table Size	500x600mm	650x650mm	800x800mm	900 x 900mm	Main Table 300 x 400mm Support Table 300 x 400mm Total Size 600 x 400mm	Main Table 300 x 400mm Support Table 300 x 400mm Total Size 600 x 400mm
Throat	350mm	450mm	550mm	650mm	350mm	350mm
Under Guide Height	225mm	350mm	350mm	450mm	350mm	450mm
Job Loading Height	800-900mm	1000-1100mm	1000-1100mm	1100-1200mm	300-1000 mm	1000-1100 mm
Optional at Extra Cost - Table Tilt Arrangement	LH - 10deg RH - 20deg	LH - 10deg RH - 20deg	LH - 10deg RH - 20deg	LH - 10deg RH - 20deg	Not Applicable	Not Applicable
Optional at Extra Cost - Table Srew Feeding	200 / 300mm Stroke	300 Stroke	300 Stroke	400 Stroke	Not Applicable	Not Applicable
Hydraulic Table Feed	Not Applicable	Not Applicable	Not Applicable	Not Applicable	LM Guide way Table with 400 mm Feed Stroke	LM Guide way Table with 500 mm Feed Stroke
Blade Size	3505 x 27 x 0.9mm	4100 x 34 x 1.1 mm	4570 x 34 x 1.1 mm	6700 x 41/54 x 1.5mm	3760 x 27 x 0.9 mm	4100 x 34 x 1.1 mm
Blade Speed m/min	22/44/66/88	22/44/66/88	22/44/66/88	22/44/66/88	22/44/66/88	22/44/66/88
Motor Power	2 HP	3 HP	5 HP	7.5 HP	3HP	5HP
Coolant Motor HP	0.12HP	0.12HP	0.12HP	0.12HP	0.12HP	0.12HP
Supply Voltage	3Ø, 440 VAC	3Ø, 440 VAC	3Ø, 440 VAC	3Ø, 440 VAC	3Ø, 440 VAC	3Ø, 440 VAC
Protection Degree	Elec.Motor.IP-55 Limit Switch IP-67	Elec.Motor.IP-55 Limit Switch IP-67	Elec.Motor.IP-55 Limit Switch IP-67	Elec.Motor.IP-55 Limit Switch IP-67	Elec.Motor.IP-55 Switch IP-67	Elec.Motor.IP-55 Switch IP-67
Job Weight	Up to 200kg	Up to 300kg	Up to 300kg	Up to 300kg	Up to 500kg	Up to 700kg
Machine Weight	@650kg	@850kg	@950kg	@1100kg	@2000kg	@2700kg.
Machine Dimension	L700 x W 900 x H 1800mm	L900 x W 1200 x H 2000mm	L1000 x W 1350 x H 2300mm	L1300 x W 1650 x H 2750mm	L1200 x W 1360 x H 2240 MM	L1700 x W 1400 x H 2400 MM

Features :

• Section Cutting of castings
• Flash cutting
• Ferrous & Non Ferrous Cutting
• HDPE Pipe Fitting Cutting
• Low Cost

Standard Scope of Supply :

• MS Fabricated Heavy Stress Relieved Base
• Chip Brush Assembly
• Manual Band Tension
• One Mounted Bimetal Bandsaw blade.
• Precision Tungstan Carbide Wear Parts for Straight cutting.
• Half Cover Push in Type Coolant splash Guard System.
• Complete Coolant System with Piping & Rajamane Make Coolant Pump.
• Complete Electrical Panel with Switchgears.
• Machine Lamp.
• Operation Tool Kits & Spanner sets.
• Instruction Manual.

Optional Accessories :

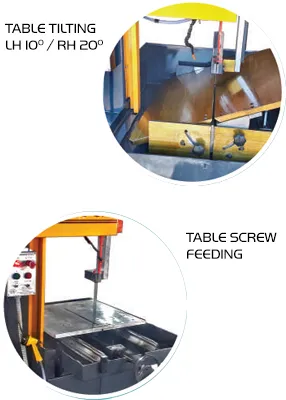

• Tilt Table Arrangement. LH Side 10 Degree & RH Side 20 Degree
• Fix Table can be Movable by Screw & Nut Arrangement.
• Two Years Maintenance Spare kit.
• Special Tools & Fixtures if required for Components.

Application :

CI & Aluminium Foundry for Runner— Riser Cutting & Section cutting, Bath Room Fitting Manufacturers, Tyre Industry, Forging Industry, Machining Industry, Automobile, Aerospace, Plastic/PVC/ HDPE pipe Industry, Agriculture, Pump Industries, Marine Industries, Railway Industry.

Fixtures :

• Model VT - 350 M is Manual is Hydraulic Semi auto is rigid, Heavy Duty, High speed Machine
• Blade is guided by tungsten Carbide wear pads & Hardened Guide rollers to improve the blade life.
• The machine is suitable for cutting Rrisers, Runners of Casting, Certical Space Plates, Sheets, Round, Hex Squre of all types of materials & even Angular cross section.
• Bandwheels are Graded C.I. material.
• The Speed Reduction is given through High Power Transmission Gear box.

Standard Equipments :

• Machine with T-solt Work table
• Power Driven chip Brush Assy
• Coolant System with pump and piping
• One M42 grade bimetal blade
• Hydraulic powe pack for SA model
• Operation tools & spanners
• Work Lamp
